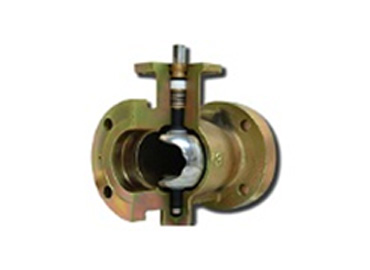

Side Entry TSE:

- Component structure made of forged materials;
- Size range: 2” to 56”;
- 3 piece bolted body;
- Pressure range from ASME Class 150 through 2500 API 6D and API 6A 2000 to 10000;
- Temperature ranges from -320F (-196°C) to +500F (+260°C);
- Full and reduced bore.
- RF and RTJ type flanged end connection (other ends connection available).

Top Entry TTE:

- One piece Top Entry body style;
- Size range: 2” to 42”;
- Forged Body up to 6", 8" and above Cast Body;
- Forged Body 8" and above on request;
- Pressure range from ASME Class 150 through 1500 and 2500 API 6D and API 6A;
- Temperature ranges from -320F (-196°C) to +500F (+260°C);
- Full and reduced bore;
- RF and RTJ type flanged end connection (other ends connection available).

Fully Welded TSW and Fully Welded Light TSWL:

- The body is made of three forged parts connected with welded construction;
- Size range: 2” to 56”;
- Pressure range from ASME Class 150 through 900;
- Temperature ranges from -20F (-29°C) to +350F (+180°C);
- Full and reduced bore;
- Flanges RT or RTJ in accordance with ASME B16.5 or Welding Ends to ASME B16.25 (other ends connection available).

• FLOATING BALL VALVES

- Size range: 1/2” to 8”;
- ASME 150 to 2500;
- Full and reduced Bore;
- Manufactured and tested to API 6D, ISO 17292, ASME B 16.34 and BS 6755;

• SUB-SEA BALL VALVES

- Size range: 2” to 24”;
- ASME 150 to 2500;
- Full and reduced Bore;
- Manufactured and tested to API 6D, ASME B 16.34 and BS 6755;

• COMPACT BALL VALVES

- Size range: 2” to 24”;
- ASME 150 to 2500;
- Full and reduced Bore;
- Manufactured and tested to API 6D, ASME B 16.34 and BS 6755;

• DOUBLE BLOCK AND BLEED VALVES

- Size range: 2” to 24”;
- ASME 150 to 2500;
- Full and reduced Bore;
- Manufactured and tested to API 6D, ASME B 16.34 and BS 6755;

• HIPPS - HIGH INTEGRITY PRESSURE PROTECTION SYSTEM BALL VALVES

High In-Time Reliability:
- Critical Areas Protection from External Particles;
- Partial or Full Internal C.R.A. Overlay (625);

Material Selection:
- In Accordance with Dedicate International Standards and Additional Client Requirements;
- Soft and Metal-to-Metal Seat to Ball Design;

• CRYOGENIC BALL VALVES

High In-Time Reliability:
- Critical Areas Protection from External Particles;
- Partial or Full Internal C.R.A. Overlay (625);

Material Selection:
- In Accordance with Dedicate International Standards and Additional Client Requirements;
- Soft and Metal-to-Metal Seat to Ball Design;
